Diatta Tuned RC

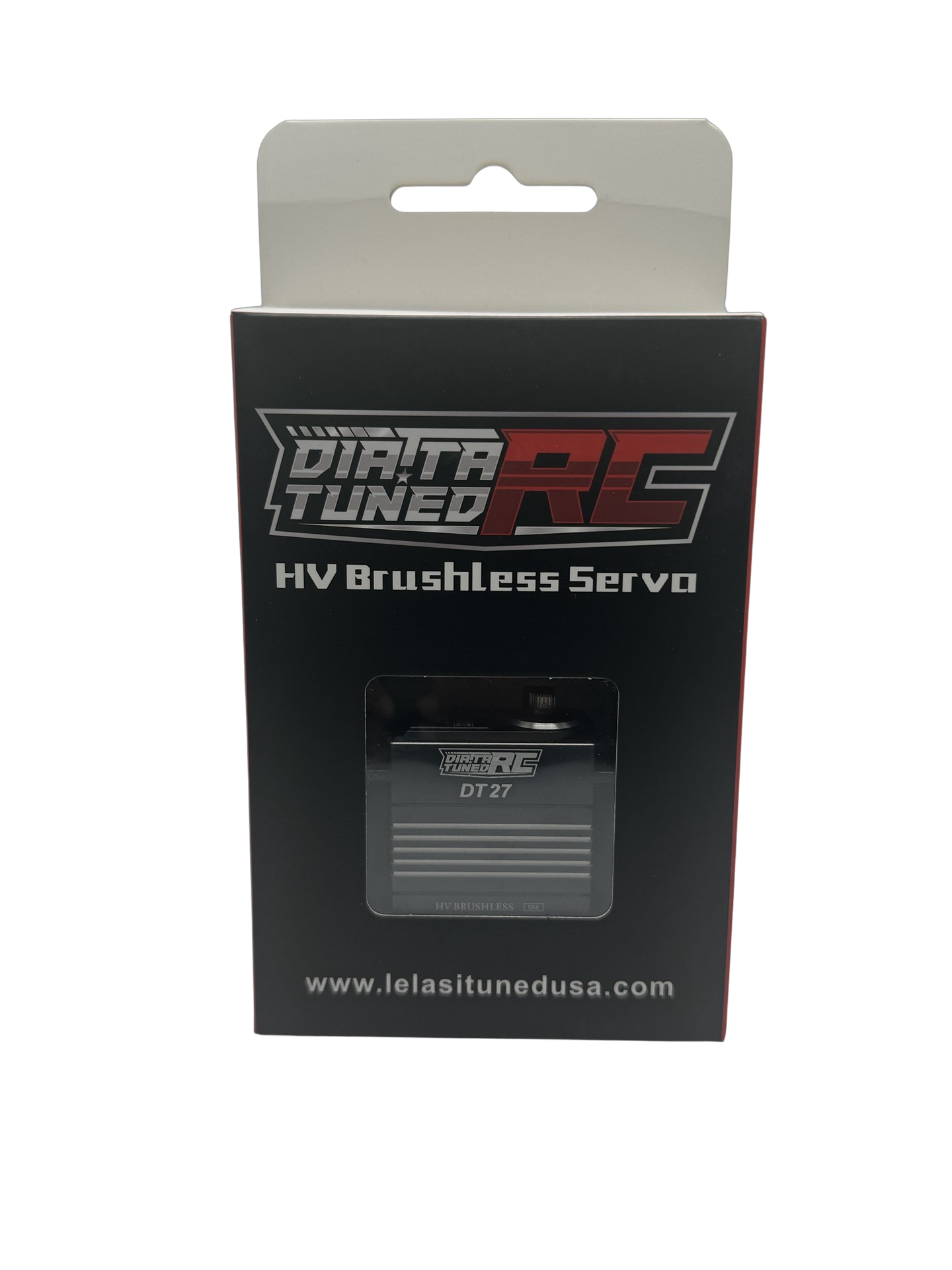

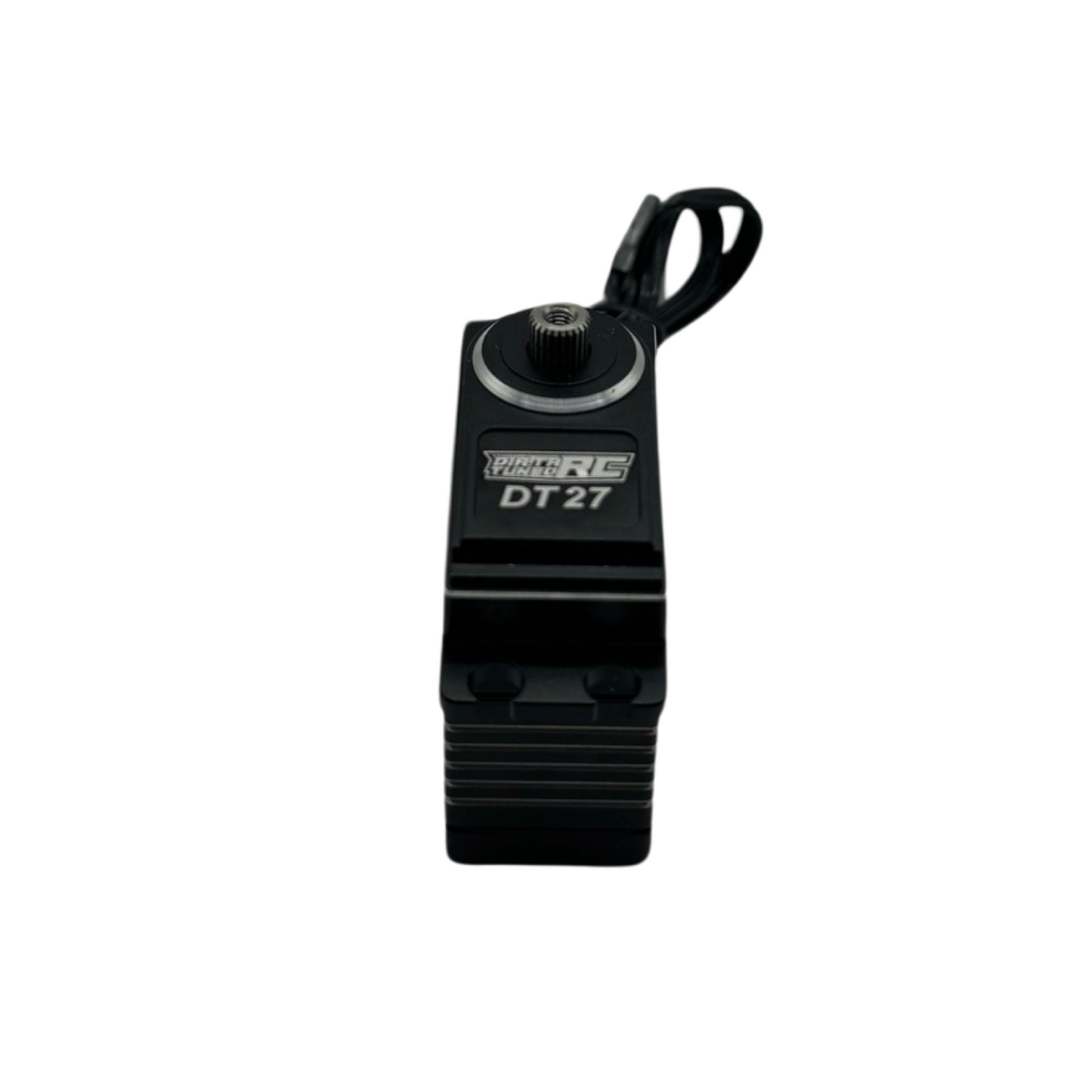

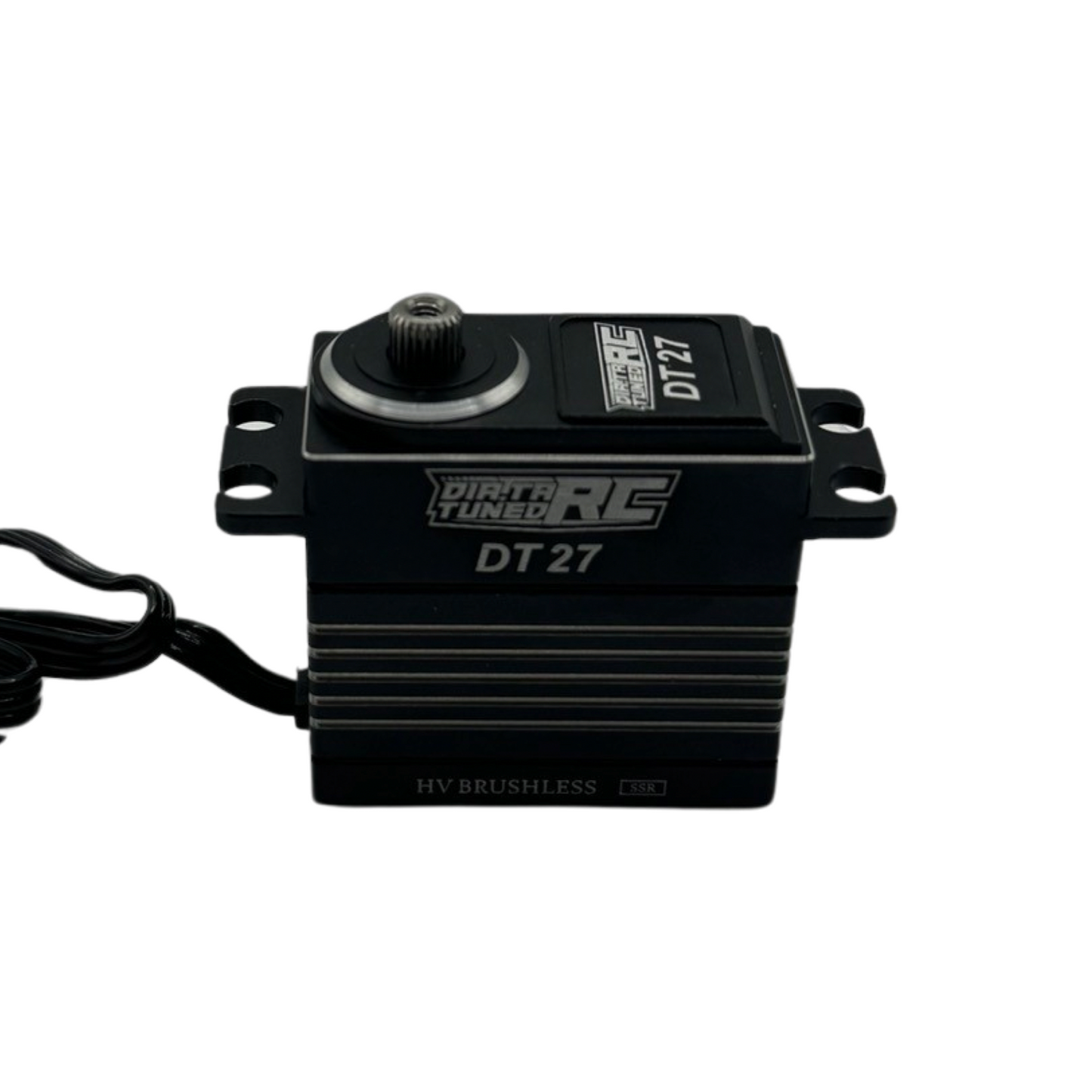

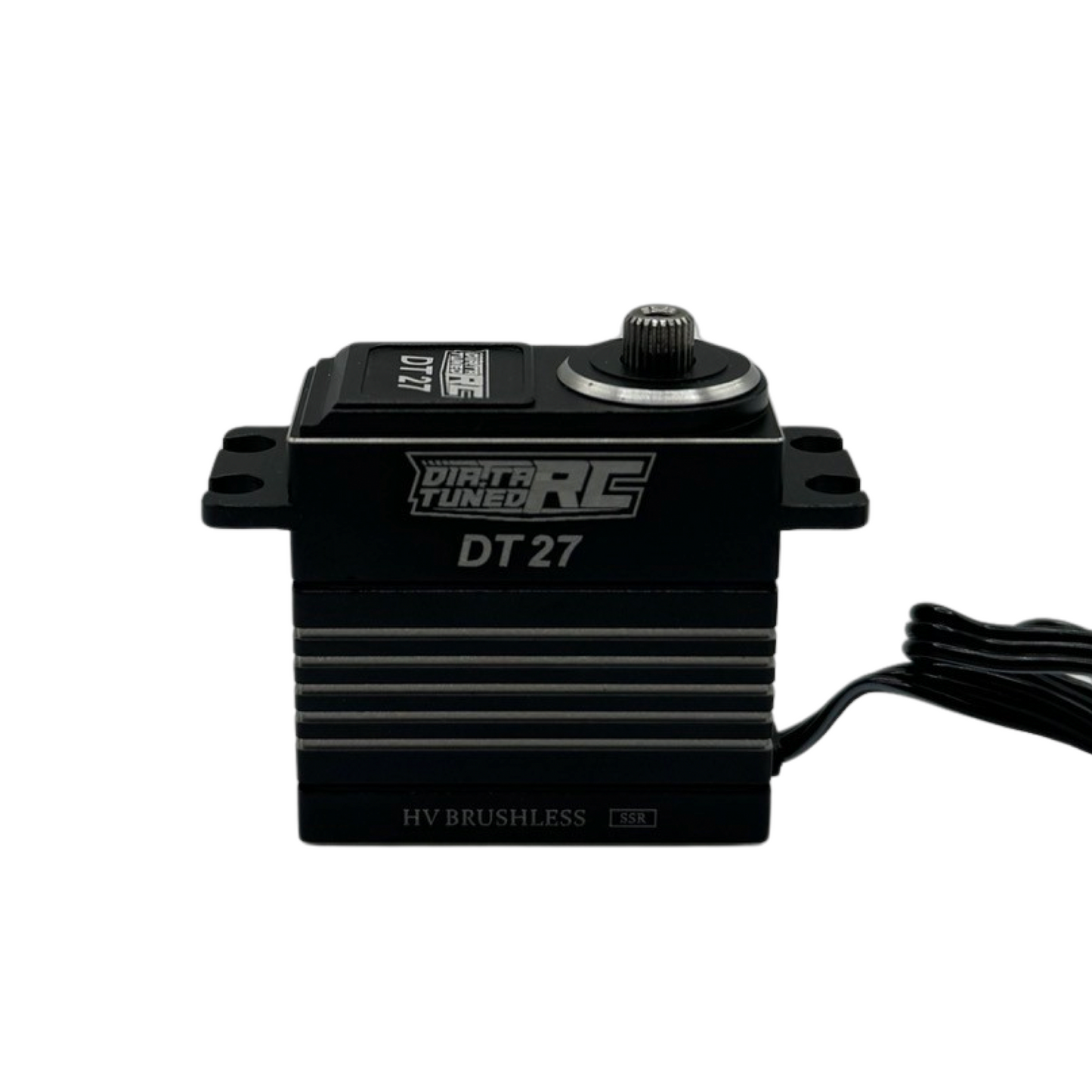

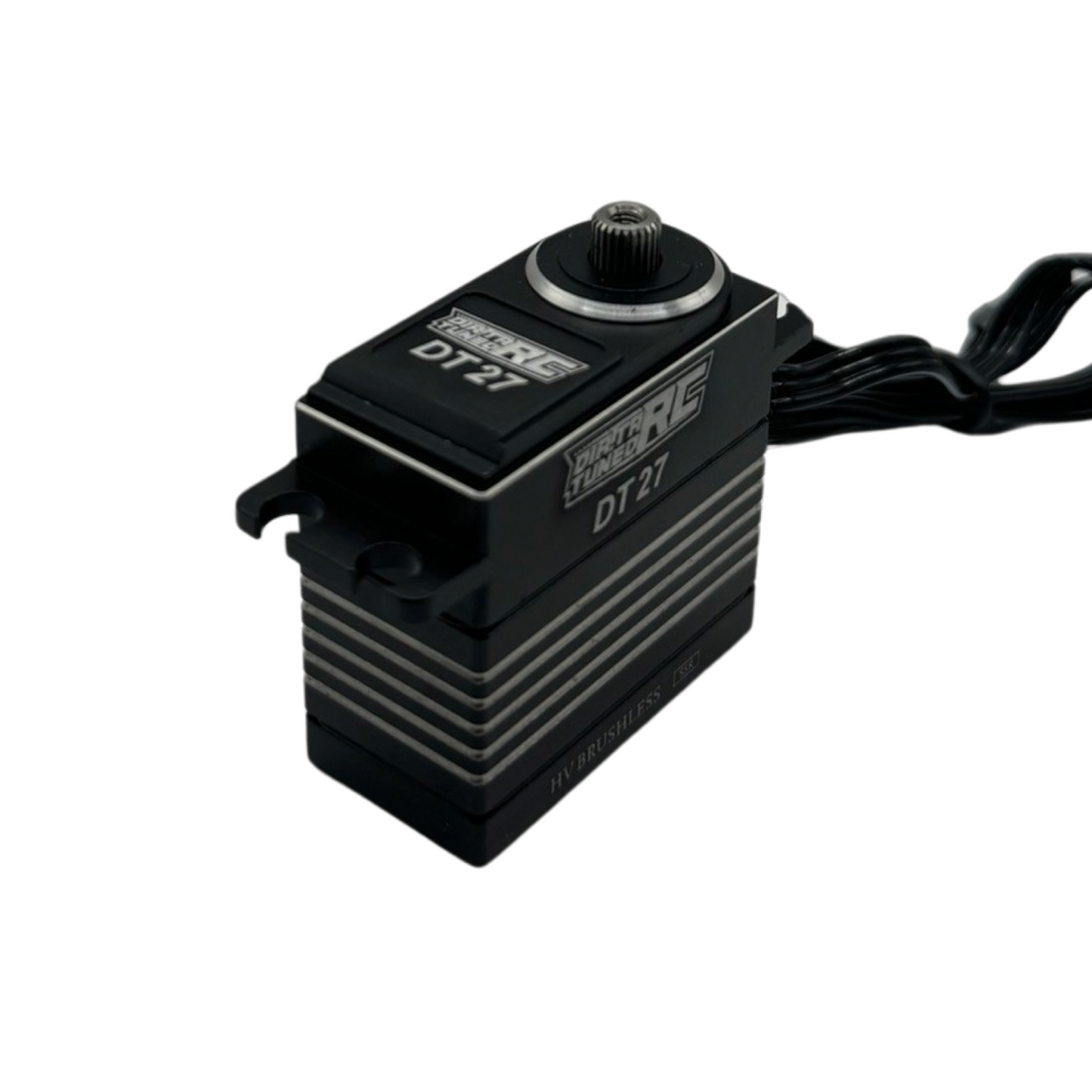

DT27 Brushless HV Titanium & Steel Gear Digital Servo (Silver) DTRC
Couldn't load pickup availability
1/8 competition servo. Super holding torque & pricise control. , full-metal CNC engraving groove case, 2BB, 303 steel gears.
Brushless motor, top quality upgraded PCB & potentiometer. SSR,SHR mode available.
Products Specification DT27
Type: Digital
Bearing: Dual
Motor Type: brushless
Gear Material:303 steel & 7075 titanium
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating Voltage: DC 6.0-8.4V
Operating Temperature Range: -10 to +60 degree
Operating Speed (6.0v): 0.095 sec/60 degrees at no load
Operating Speed (7.4v): 0.075 sec/60 degrees at no load
Operating Speed (8.4v): 0.07 sec/60 degrees at no load
Stall Torque (6.0v): 22.0kg.cm (305.5 oz/in)
Stall Torque (7.4v): 27.0kg.cm (375 oz/in)
Stall Torque (8.4v): 30.0kg.cm (416.6 oz/in)
Potentiometer Drive: Direct drive
Dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
Weight: 70.0g (2.47 oz)
Connector Wire Length: jr 300 mm
