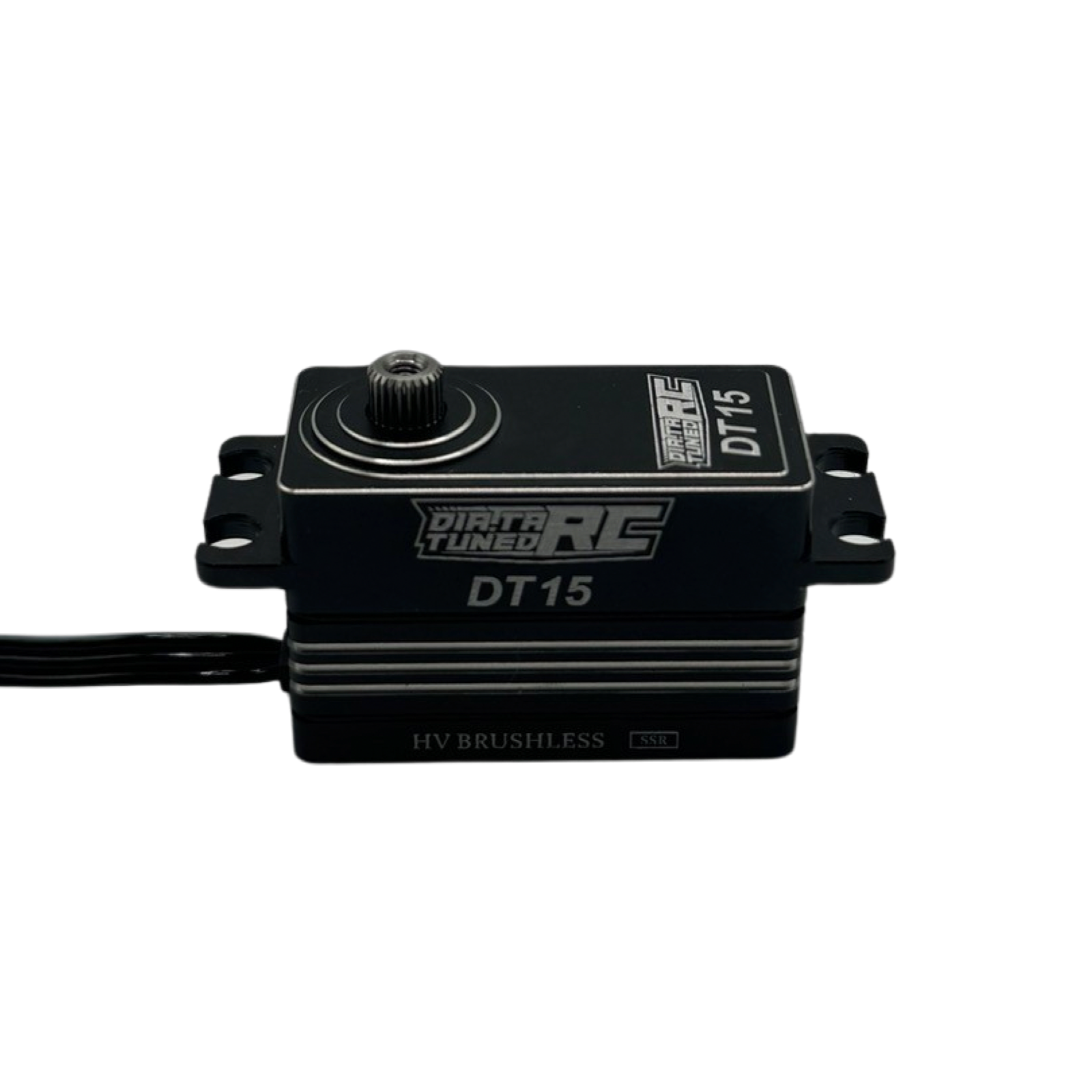

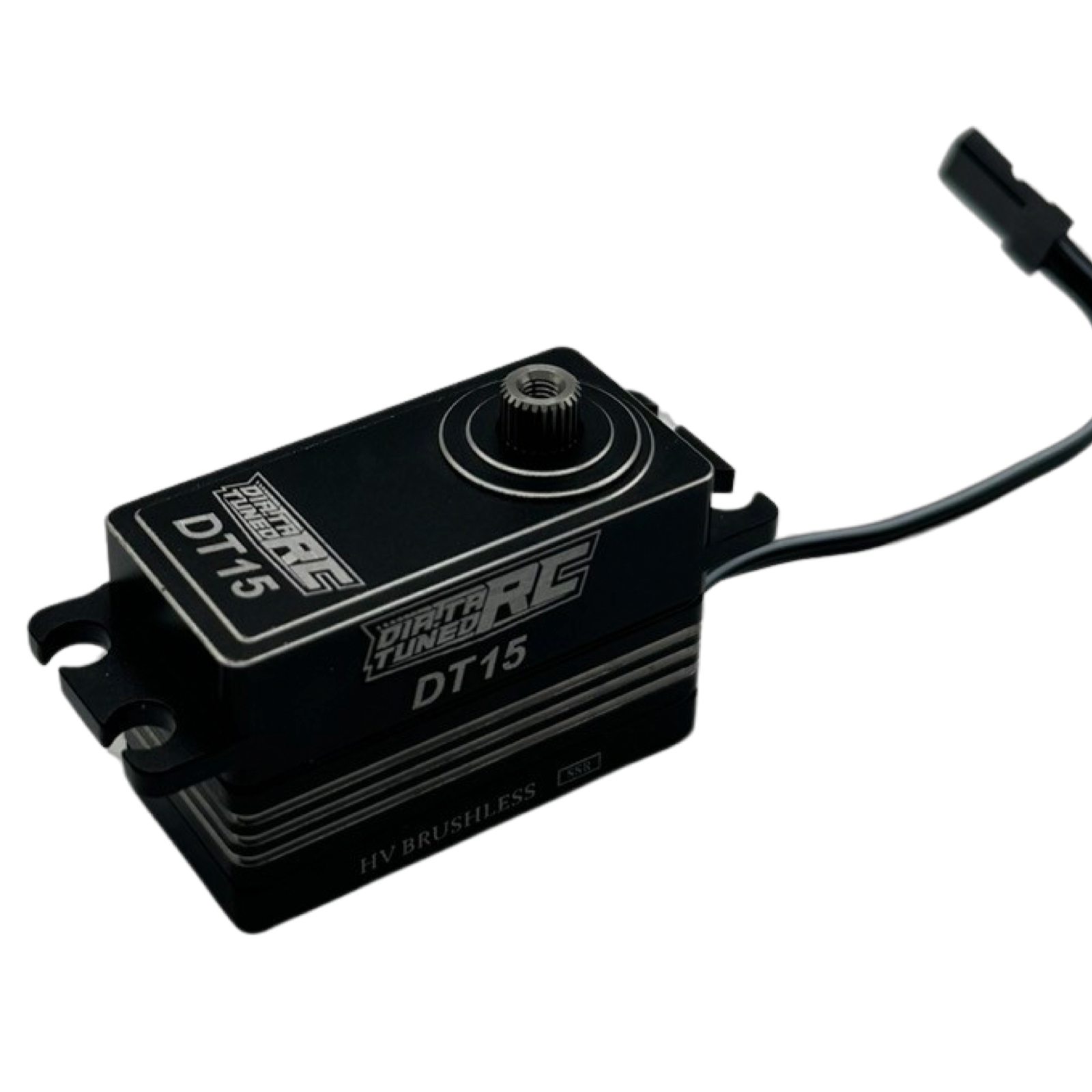

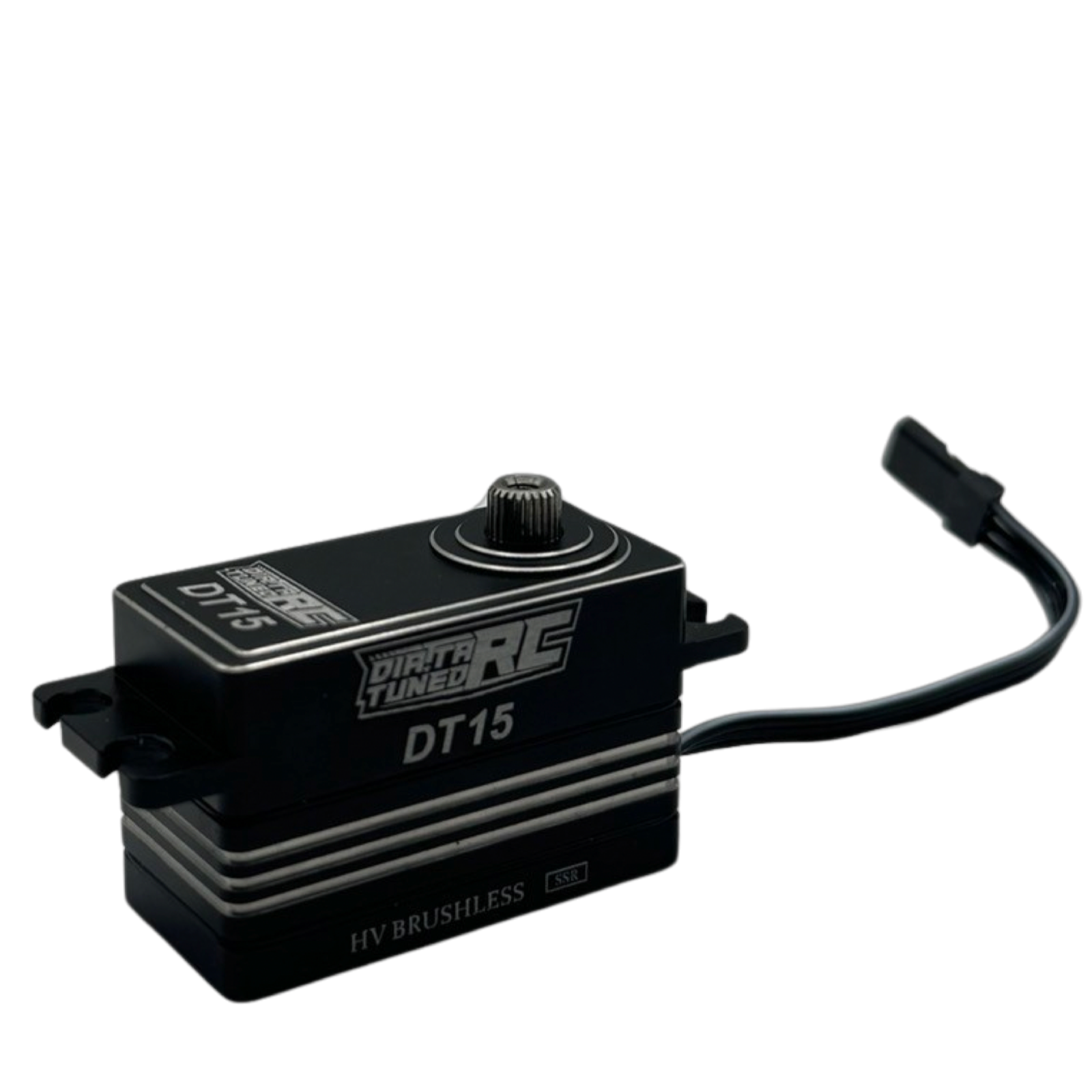

DT15 Brushless HV Low Profile Titanium & Steel Gear Digital Servo (Silver) DTRC
Couldn't load pickup availability
1/10 on-road competition level speed king low-profile servo. With pricise control, full-metal CNC engraving groove case, 2BB, 303 steel gears.
Brushless motor, top quality upgraded PCB & potentiometer. SSR,SHR mode available.
Products Specification DT15
Motor Type: Brushless
Type: Digital
Bearing: Dual
Gear Material: 303 steel & 7075 titanium
Control System: pulse width control
Working Frequence: 1520μs / 330hz
Operating Voltage: DC 6.0-8.4V
Operating Temperature Range: -10 to +60 degree
Operating Speed (6.0v): 0.072 sec/60 degrees at no load
Operating Speed (7.4v): 0.06 sec/60 degrees at no load
Operating Speed (8.4v): 0.050 sec/60 degrees at no load
Stall Torque (6.0v): 11.5.0kg.cm (159.7 oz/in)
Stall Torque (7.4v): 15.0kg.cm (208.3 oz/in)
Stall Torque (8.4v): 16.5kg.cm (229.1 oz/in)
Potentiometer drive: Direct drive
Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
Weight: 52.0g (1.83 oz)
Connector Wire Length: JR 180 mm
