Diatta Tuned RC

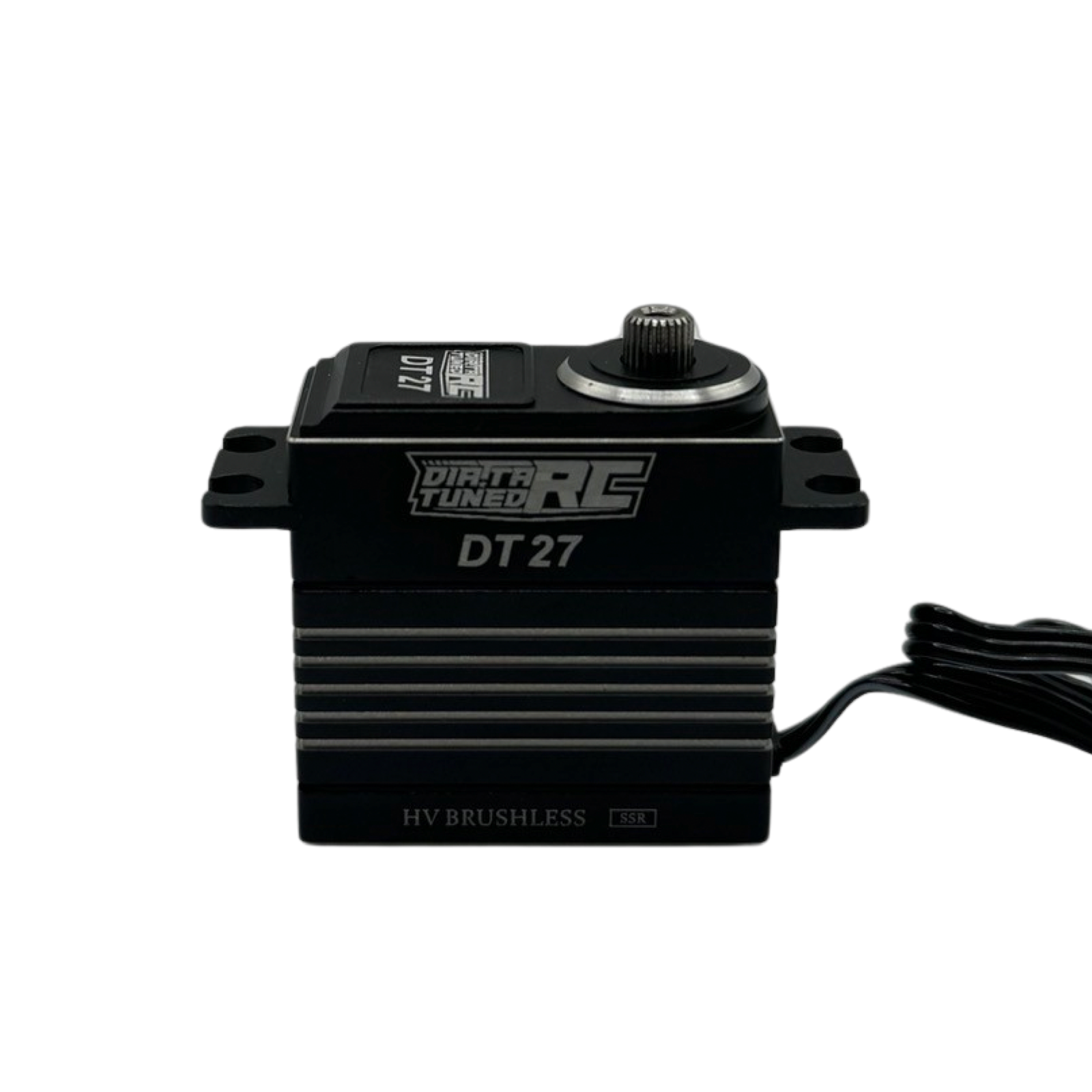

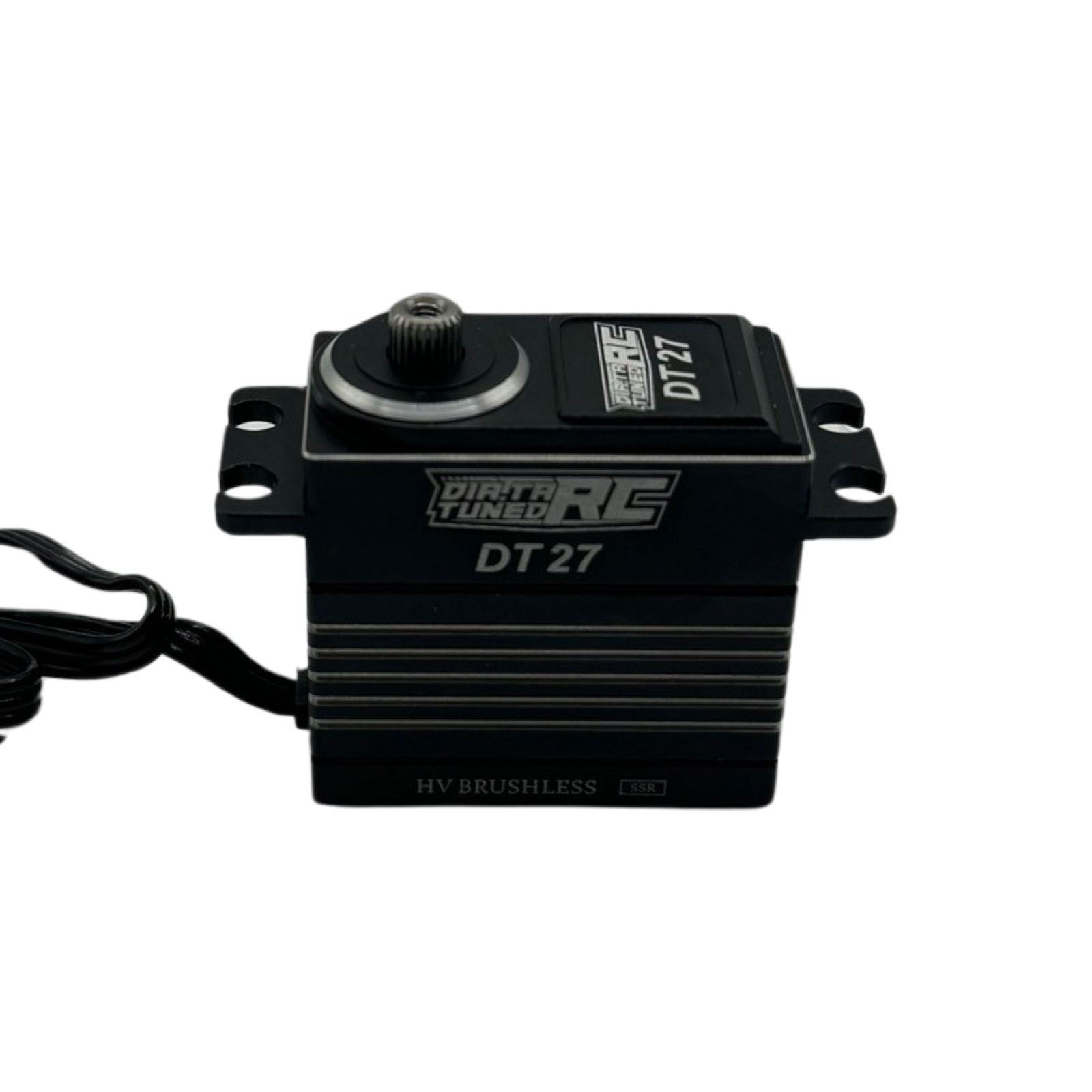

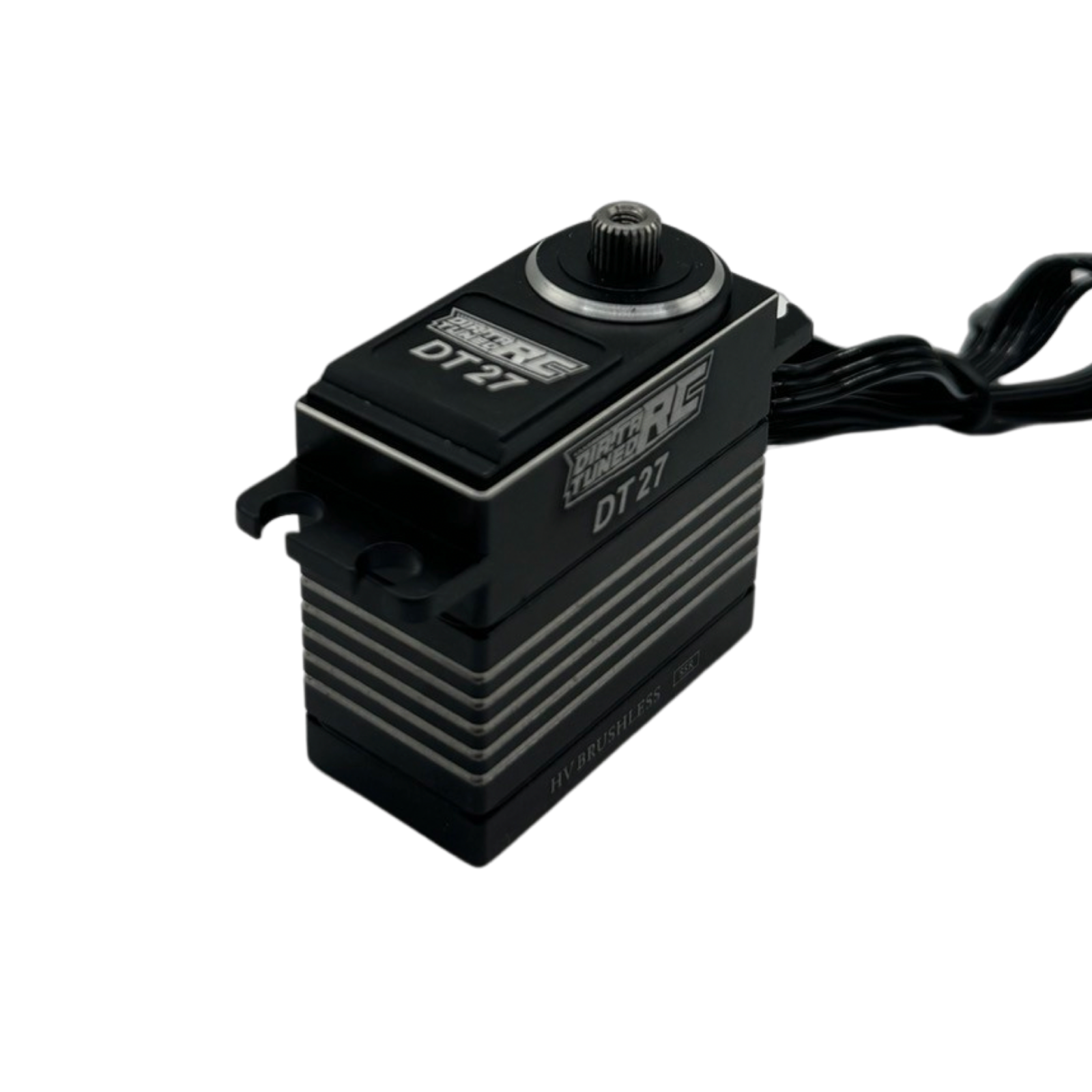

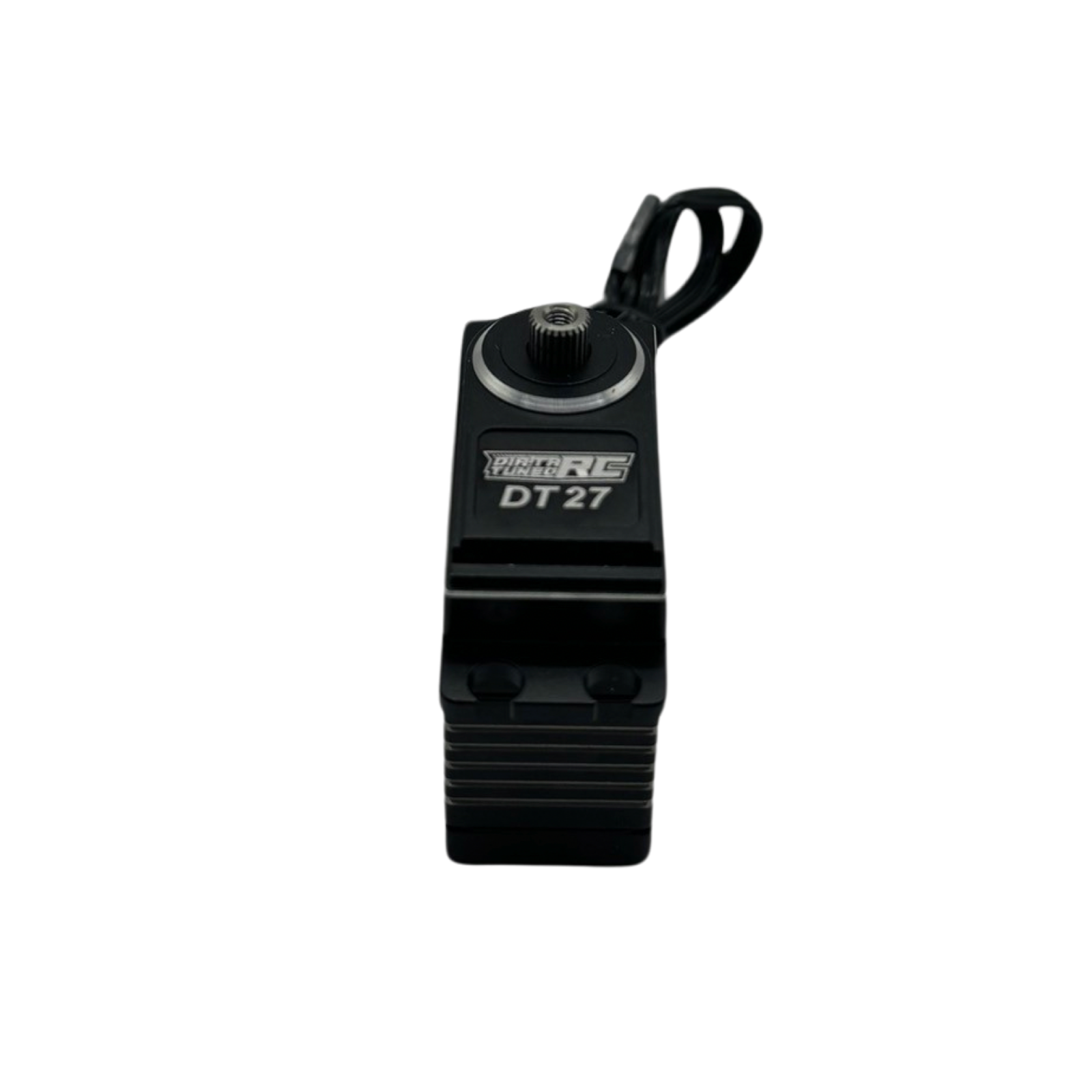

DT27 Brushless HV Titanium & Steel Gear Digital Servo (Silver) DTRC

Regular price $174.00 CAD
Regular price $229.00 CAD Sale price $174.00 CAD
Sale Sold out

1/8 competition servo. Super holding torque & pricise control. , full-metal CNC engraving groove case, 2BB, 303 steel gears.
Brushless motor,
top quality upgraded PCB & potentiometer. SSR,SHR  mode available.

Products Specification DT27

Type: Digital

Bearing: Dual

Motor Type: brushless

Gear Material:303 steel & 7075 titanium

Control system: pulse width control

Working frequence: 1520μs / 330hz

Operating Voltage: DC 6.0-8.4V

Operating Temperature Range: -10 to +60 degree

Operating Speed (6.0v): 0.095 sec/60 degrees at no load

Operating Speed (7.4v): 0.075 sec/60 degrees at no load

Operating Speed (8.4v): 0.07 sec/60 degrees at no load

Stall Torque (6.0v): 22.0kg.cm (305.5 oz/in)

Stall Torque (7.4v): 27.0kg.cm (375 oz/in)

Stall Torque (8.4v): 30.0kg.cm (416.6 oz/in)

Potentiometer Drive: Direct drive

Dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in

Weight: 70.0g (2.47 oz)

Connector Wire Length: jr 300 mm
